Tuya ZigBee Multi-Sensor – Motion/Temp/Humi/Light PIR 313-Z-TY

Main Feature:

The PIR313-Z-TY is a Tuya ZigBee version multi-sensor which is used to detect movement, temperature & humidity and illuminance in your property. It allows you to receive notification from the mobile app When the human body movement is detected, you can receive the alert notification from the mobile phone application software and linkage with other devices to control their status.

Model : PIR 313-Z-TY

Dimension : 83*83*28mm

Weight: 65g

Certification: CE,RoHS

Send Inquiry Download of Datasheet Download of Manual

Product Detail

VIDEO

Product Tags

▶ Main Features:

ZigBee 3.0
Tuya compatible
PIR motion detection
Illumination measurement
Environmental temperature & humidity measuring
Low power consumption
Anti-tamper
Low battery alerts

zigbee temperature humidity sensor zigbee sensor for elder care system zigbee 3.0 motion detector

zigbee sensor for BMS integration zigbee environment sensor factory zigbee automation sensor

zigbee sensor for energy control zigbee sensor for elder care system zigbee sensor compatible with smart home system

OEM/ODM Flexibility for Smart Sensing Integrators
The PIR313 is a versatile ZigBee multi-sensor designed for motion detection, ambient temperature, humidity, and illuminance monitoring, ideal for smart home and building automation. OWON provides comprehensive OEM/ODM support for clients requiring tailored solutions:

Firmware adaptability for ZigBee 3.0, ZigBee2MQTT, or Tuya ecosystems
Custom branding and casing design for white-label deployment
Seamless integration with Tuya hubs, open-source controllers, or proprietary BMS platforms
Support for OTA updates to enable feature upgrades in large-scale deployments

Compliance & Low-Power, Long-Life Design
This multi-sensor is engineered to meet global standards while ensuring reliable performance with minimal power consumption:

Compliant with wireless and environmental standards (CE, RoHS compliant)

Low-power ZigBee mesh networking for extended coverage (outdoor range up to 100m in open areas)

Anti-tamper mechanism and stable RF interference resistance (10MHz - 1GHz 20V/m)

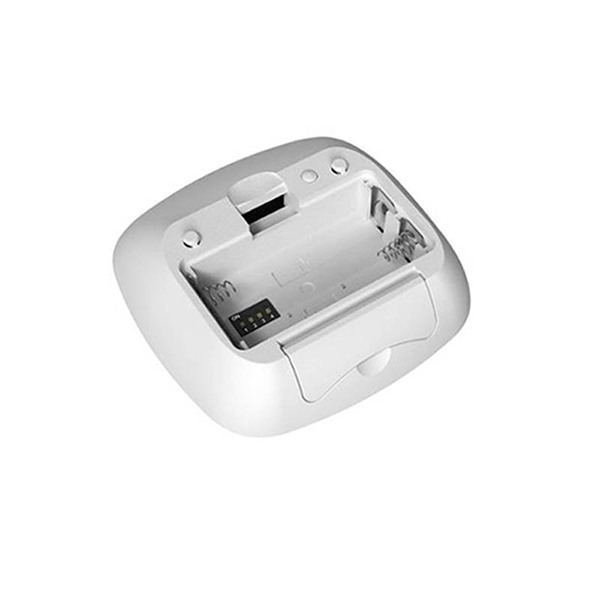

Battery-powered (2x AAA) with long standby life (≤40uA standby current) and low battery alerts

Application Scenarios
The PIR313 excels in diverse smart sensing and automation scenarios:

Motion-triggered lighting or HVAC control in smart homes, hotels, and offices

Ambient condition monitoring (temperature, humidity, illuminance) for retail stores or warehouses

OEM components for smart building starter kits or subscription-based automation bundles

Integration with ZigBee BMS for energy-saving triggers (e.g., adjusting lighting based on illuminance)

Intrusion alerting in residential complexes or managed properties with 6m detection distance and 120° angle

▶ Application:

▶ Shipping Method:

About OWON

OWON provides a comprehensive lineup of ZigBee sensors for smart security, energy, and elderly care applications.
From motion, door/window, to temperature, humidity, vibration, and smoke detection, we enable seamless integration with ZigBee2MQTT, Tuya, or custom platforms.
All sensors are manufactured in-house with strict quality control, ideal for OEM/ODM projects, smart home distributors, and solution integrators.
