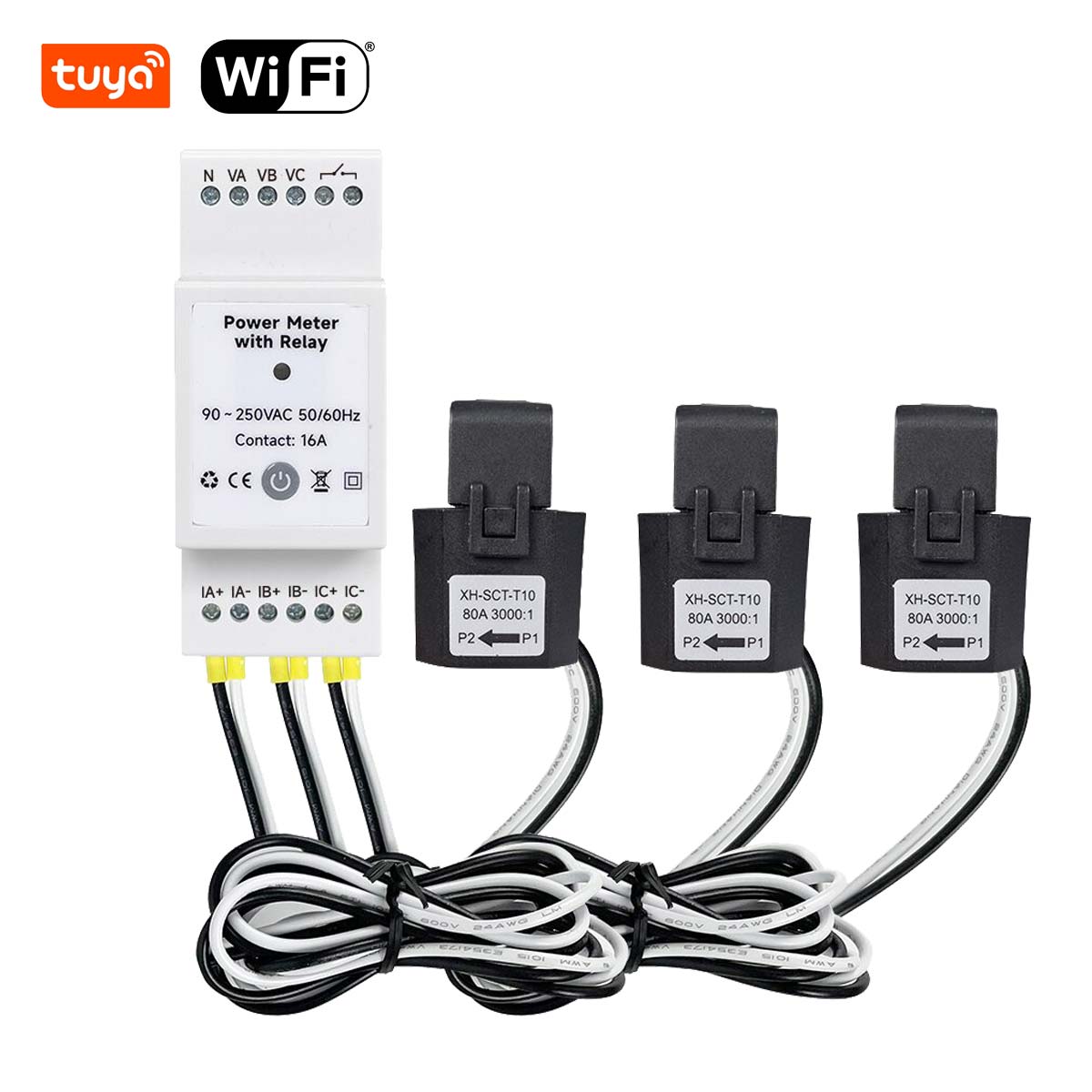

Din Rail 3-Phase WiFi Power Meter with Dry Contact Relay

Main Feature:

3-Phase Din rail Wifi power meter (PC473-R-W-TY ) helps you monitor power consumption and generation, and is compatible with three-phase, split-phase, and single-phase electrical systems. Using dry-contact relays, you can remotely or on a schedule turn the load line on/off. It measures and uploads data such as voltage, current, power factor, active power, and active energy in real time, and supports viewing historical records or exporting data via a mobile app.

Model: PC 473-R-W-TY

Dimension: 35mm x 90mm x 50mm

Weight: 89.5g (Without clamp)

Certification: CE,RoHS

Send Inquiry Download of Datasheet Download of Manual

Product Detail

Main Specs

Video

Product Tags

Main Features

• Supports integration with Tuya App and MQTT API platforms
• Compatible with Amazon Alexa, Google Assistant, Apple HomeKit, and Home Assistant, and supports integration with BMS/EMS systems
• Supports single-phase and three-phase electrical systems
• Measures real-time voltage, current, power factor, active power, and frequency
• Supports bidirectional measurement of energy consumption and energy production

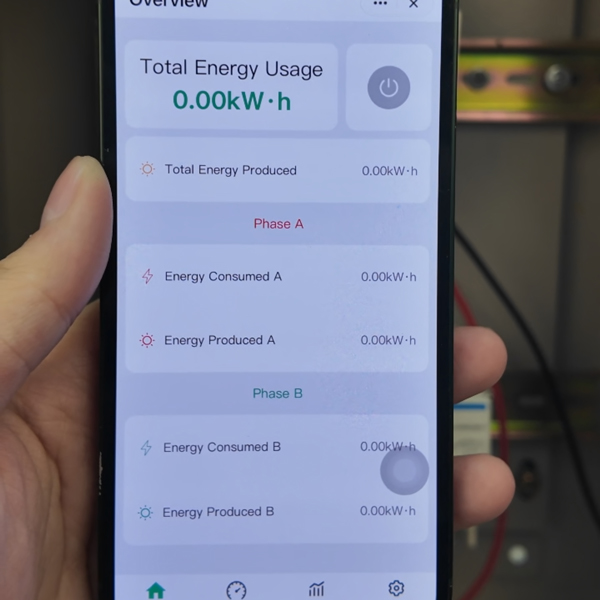

• Provides historical data tracking and data export
• DIN rail design for easy installation
• Built-in 16A dry contact relay with overload protection

wifi power meter three phase power meter tuya smart energy meter digital smart meter commercial energy meter

power meter single phase 120A 200A 300A 500A 750A

smart meter factory china bulk smart meters 80A 120A 200A 300A 500A 750A

Application Scenarios

The PC-473 is ideal for B2B clients requiring intelligent energy metering and load control in flexible electrical environments:
• Smart home users requiring energy monitoring and load control
• Businesses needing equipment energy monitoring and remote on/off control
• Home users monitoring EV charger energy consumption with scheduling and remote control
• Users monitoring solar inverter output with remote switching control

3 Phase Din Rail Energy Meter Electricity Wiring Diagram

tuya 3 phase energy meter tuya zigbee smart meter factory smart meter for building automation

FAQ:

Q1. What types of power systems does the PC473 support?
A: The PC473 WiFi DIN rail energy meter supports single-phase and three-phase systems, suitable for residential, commercial, and industrial energy monitoring applications.
Q2. Does the PC473 include relay control?
A: Yes. It features a 16A dry-contact relay, allowing for remote on/off control, configurable schedules, and overload protection, making it ideal for integration into HVAC, solar, EV charging stations, and smart energy projects.
Q3. What clamp sizes are available?

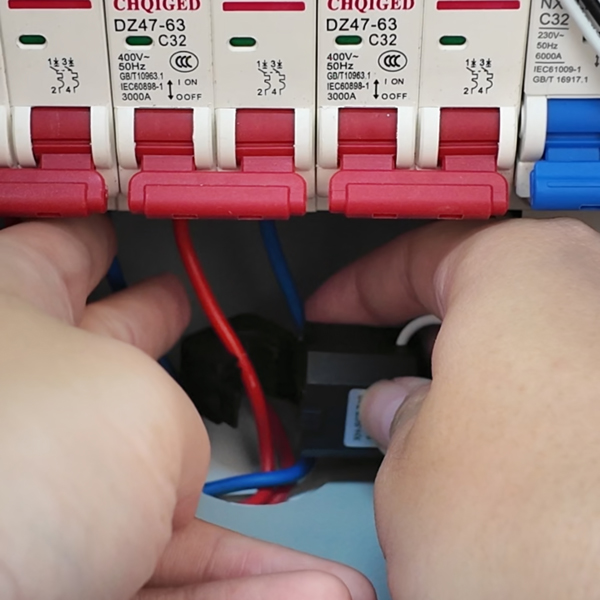

A: Clamp-on CT options range from 20A to 750A, with different diameters to match cable sizes. This ensures flexibility from small-scale monitoring to large commercial systems.
Q4. Is the smart meter (PC473) easy to install?

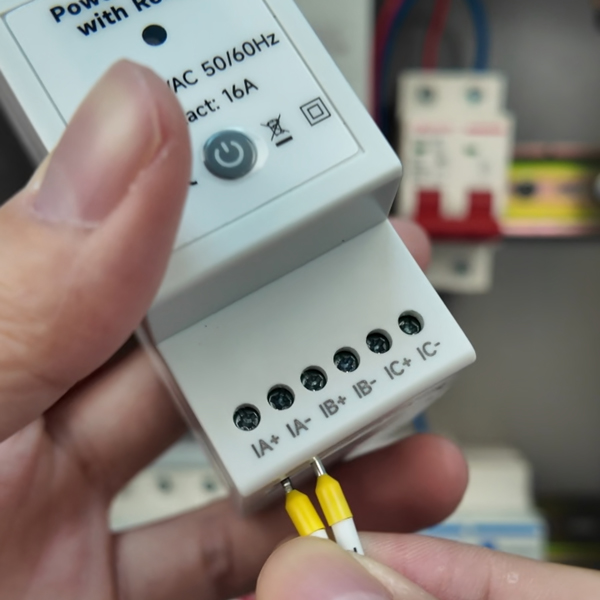

A: Yes, its DIN rail mounting design and lightweight construction allow for quick installation on distribution boards.

Wi-Fi	802.11b/g/n @2.4GHz
BLE	Bluetooth 5.2 Low Energy
RF Characteristics	• Operating frequency: 2.4GHz • Internal antenna
Operating Voltage	90~250 Vac 50/60 Hz
Max. Load Current	16A Dry contact
Calibrated Metering Accuracy	• ≤ 100W Within ±2W • >100W Within ±2%
Reporting Cycle	• Energy data: Every 15 seconds •On/Off: Report when status changes immediately
Din Rail Height	35mm
Clamp diameter	• 80A: 10mm • 120A: 16mm • 200A: 20mm • 300A: 24mm • 500A: 37mm • 750A: 51mm
Clamp cable length	1m
Operating environment	•Temperature:-20 ℃~+55 ℃ •Humidity: ≤ 90% non-condensing
Weight	Clamp weight： • 80A: 60g • 120A: 90g • 200A: 110g • 300A: 215g • 500A: 380g • 750A: 830g Without clamp: 89.5g
