Main Features：
• Tuya Smart Platform. Supports linking with Amazon Alexa/Google Assistant/Apple Home/Home Assistant to create automation scenarios.
• System integration, seamlessly connecting with other smart devices, third-party servers, energy management platforms, etc. via MQTT API.
• Supports single-phase, split-phase (120/240VAC), and three-phase four-wire (480Y/277VAC) electrical systems.
• Monitors whole-house energy consumption and up to 16 sub-circuits or loads (e.g., lighting circuits, water heaters, air conditioners, EV charging stations, PV inverters, etc.).
• Bidirectional energy measurement: Supports monitoring energy consumption and generation of load lines and the main circuit.
• Real-time monitoring of voltage, current, power factor, active power, and frequency for each phase and sub-circuit.
• View historical data on energy consumption and generation (hourly, daily, weekly, monthly). Supports historical data export (hourly, daily)
• External antenna design enhances signal stability and avoids shielding issues.
Product:
Split-Phase (US)
PC341-2M16S-W
(2*200A Main CT &16*50A Sub CT)
PC341-2M-W
(2* 200A Main CT)
PC341-3M16S-W
(3*200A Main CT & 16*50A Sub CT)
PC341-3M-W
(3*200A Main CT)

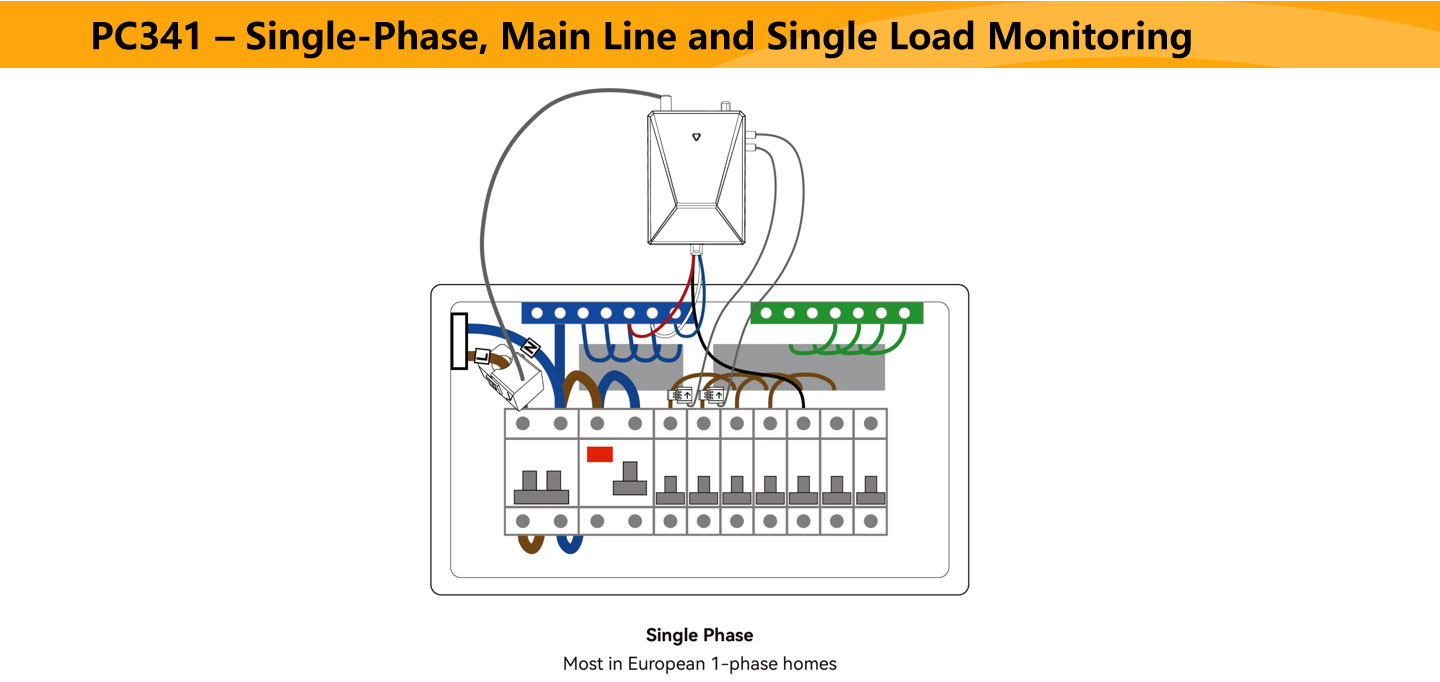

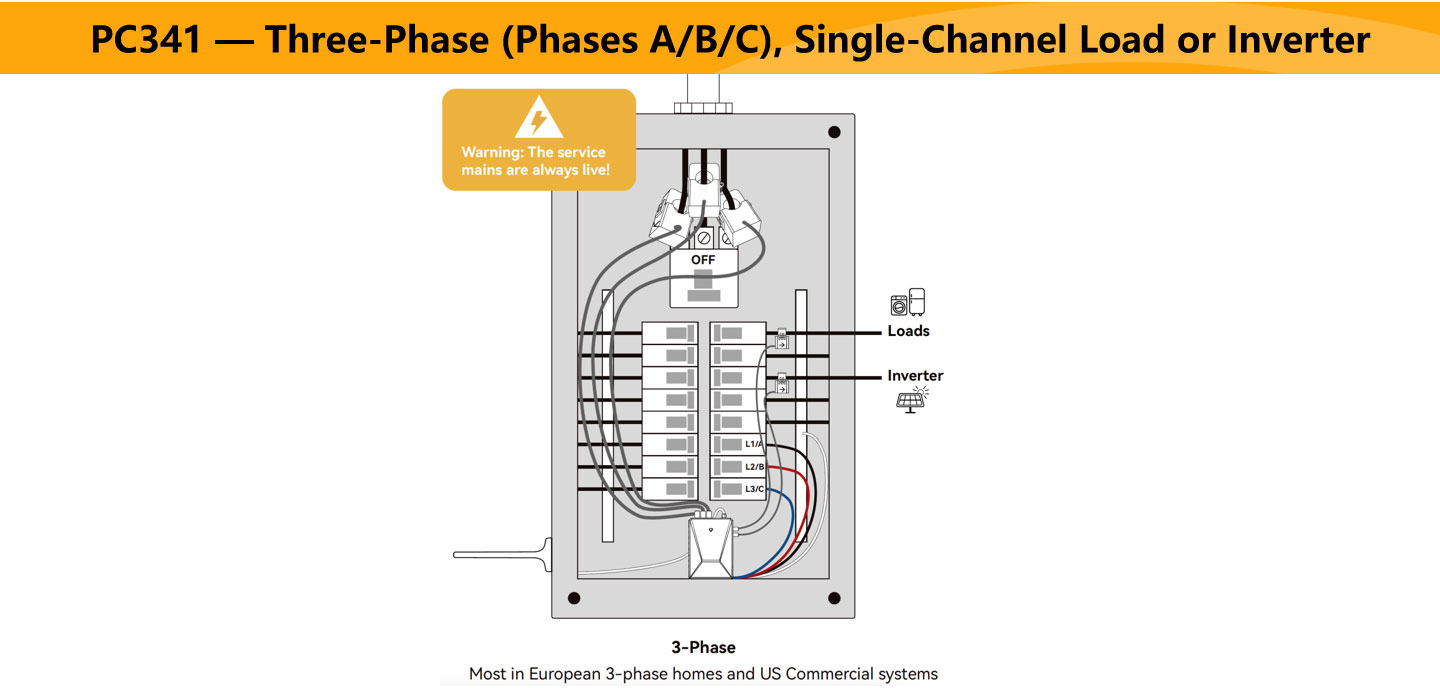

PC341 WI-FI Multi Circurt Energy Meter Wiring Diragram
Applications
• Smart home and residential energy management platforms
• EV charging and solar PV energy consumption and production monitoring
• Multi-circuit and sub-load energy metering
• Integration with enterprise energy management systems (EMS/BMS)
• Sub-metering for multi-tenant residential and commercial buildings
Video(configure network & wiring)
FAQ:
Q1: What power systems does the PC341 support?
A: It is compatible with single-phase (120–240VAC), split-phase (120–240VAC, North America), and three-phase 4-wire systems up to 480Y/277VAC.
Q2: How many circuits can it monitor at the same time?
A: In addition to the main line and Phase A/B/C, the PC341 supports monitoring of up to 16 sub-circuits, allowing independent tracking of lighting, outlets, solar inverters, and other loads.
Q3: Does it support bidirectional energy monitoring?
A: Yes. The PC341 supports bidirectional measurement, enabling simultaneous monitoring of both energy consumption and energy production across phases and sub-circuits.
Q4: What is the data reporting interval?
A: The WiFi power meter uploads real-time measurement data every 15 seconds.
|
Wi-Fi
|
802.11 b/g/n @ 2.4GHz
|
|
BLE
|
For Wi-Fi Pairing
|
|
RF Characteristics
|
• Operating frequency: 2.4GHz
• External magnetic antenna
|
|
Operating Voltage
|
90~277 Vac 50/60 Hz
|
|
Supported Systems
|
• Single-Phase 240VAC line-neutral
• Split-Phase 120/240VAC
• Three-Phase up to 480Y/277VAC
(No Delta/wye/Y/Star Connection)
|
|
Calibrated Metering Accuracy
|
±2%
|
|
Reporting Cycle
|
Every 15 seconds
|
|
Main Current Transformer(CT)
|
• 3.5mm three-Pole audio connector with 1m cable
• 200A(Default)
• 120A(Optional)
• 80A(Optional)
|
|
Sub Current Transformer(CT)
|
• 2.5mm three-Pole audio connector with 1m cable
• 50A
|
|
Operating environment
|
•Temperature:-20 ℃~+55 ℃
•Humidity: ≤ 90% non-condensing
|
|
Mount Type
|
Wall or DIN rail mounting
|
|
Certification
|
CE
|
-
