▶ Overview
The PC321 ZigBee 3-Phase Clamp Energy Meter is a professional, non-intrusive power monitoring solution designed for residential, commercial, and light-industrial energy management projects. By using current transformer (CT) clamps, the PC321 enables accurate real-time measurement of electricity consumption without cutting cables or interrupting power.
Built on ZigBee 3.0, the PC321 is ideal for smart buildings, BMS integration, sub-metering projects, and OEM energy platforms, where stable wireless communication, scalable deployment, and long-term reliability are essential.
As a manufacturer, OWON delivers this product as part of a complete smart energy ecosystem, supporting gateways, sensors, relays, and open APIs for system-level integration.
▶ Main Features
• ZigBee HA 1.2 compliant
• Competible with single-phase,split-phase,three-phase system
• Three current transformers for Single phase application
• Measures real-time and total energy consumption
• Suitable for both residential and commercial application
• Optional antenna to enhance the signal strength
• Lightweight and easy to install
▶ Product:

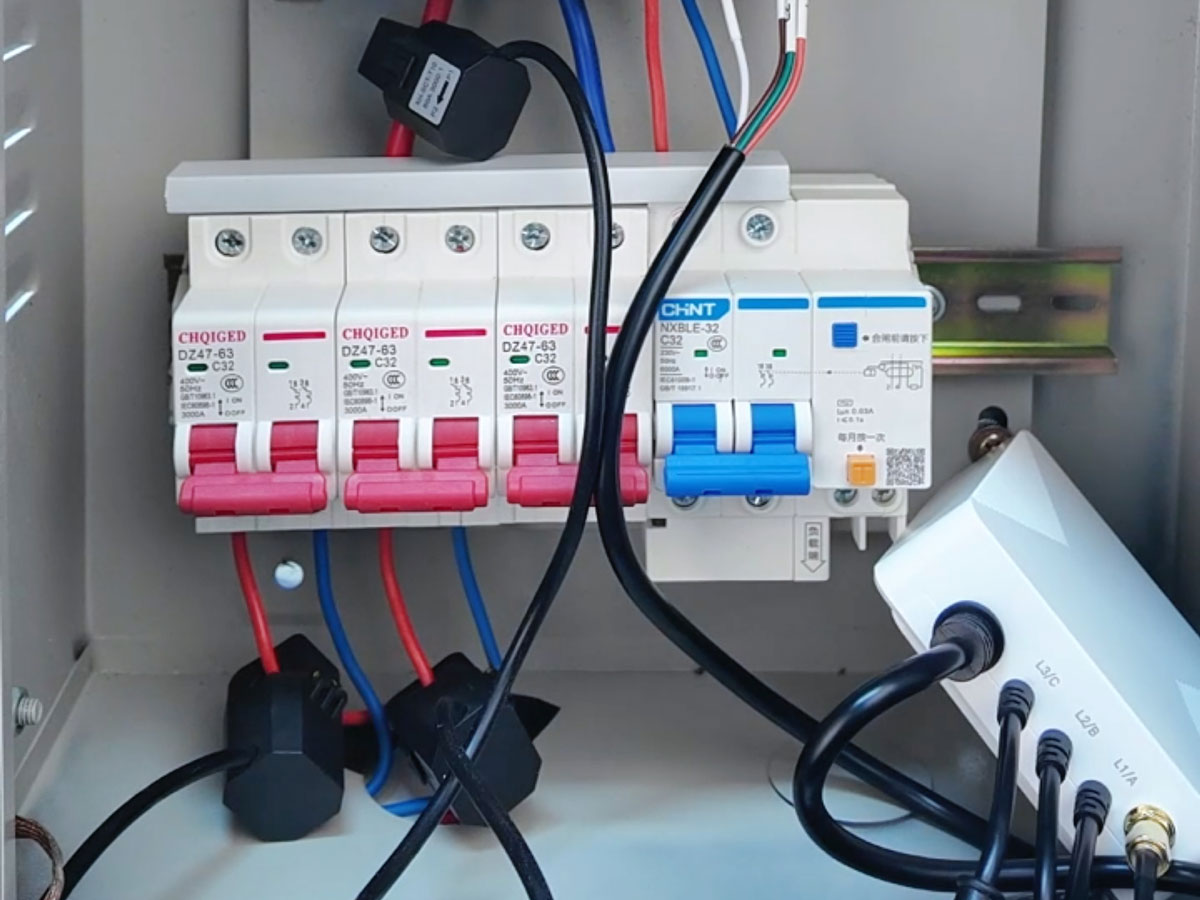

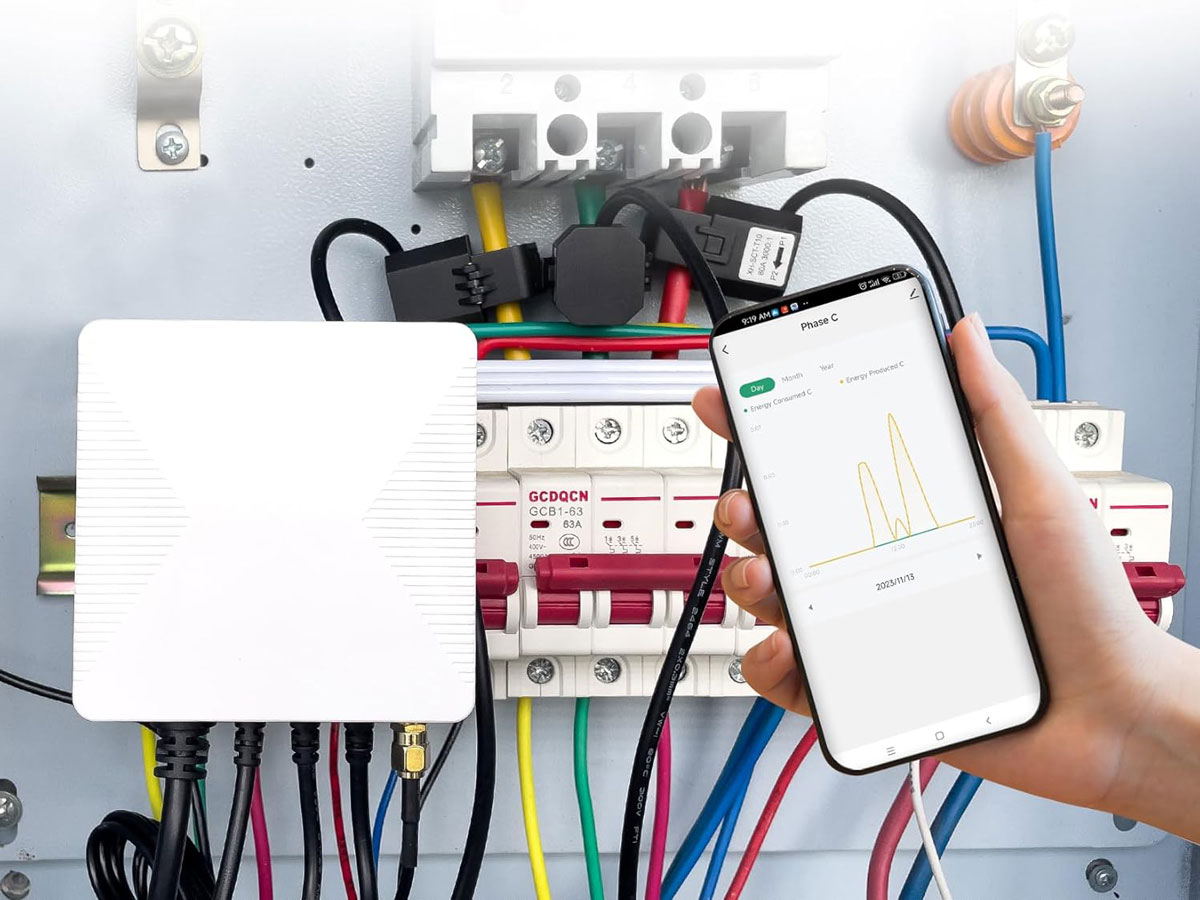

▶Application:
▶ Video:
▶ Packgae:
▶ Main Specification:
| Wireless Connectivity | ZigBee 2.4GHz IEEE 802.15.4 |
| ZigBee Profile | Home Automation Profile |
| Range outdoor/indoor | 100m/30m |
| Operating Voltage | 100-240 Vac 50/60 Hz |
| Electrical parameters measured | Irms, Vrms, Active Power & Energy, Reactive Power & Energy |
| CT Provided | CT 75A,accuracy ±1% (default) CT 100A, accuracy ±1% (optional) CT 200A, accuracy ±1% (optional) |
| Calibrated Metering Accuracy | <1% of reading measurement error |
| Antenna | Internal Antenna (default) External Antenna (optional) |
| Output Power | Up to +20dBm |
| Dimension | 86(L) x 86(W) x 37(H) mm |
| Weight | 415g |
