▶ Main Features:
- Complies with ZigBee HA1.2 profile to work with any standard ZHA ZigBee Hub
- Converts your home appliances to smart devices, such as lamps, space heaters, fans, window A/Cs,decorations,and more, up to 1800W per plug
- Controls your home devices on/off globally via the Mobile APP
- Automates your home by setting schedules to control connected devices
- Measures the instantaneous and accumulative energy consumption of the connected devices
- Switches on/off the Smart Plug manually using the toggle button on the front panel
- Slim design fits with standard wall outlet and leaves the second outlet free
- Supports two devices per plug by providing two outlets one at each side
- Extends the range and strengthens ZigBee network communication
▶Products ：
▶ Why Choose a ZigBee Smart Plug Instead of WiFi?
ZigBee mesh stability
Lower power consumption
Better for large-scale deployment
Preferred for smart buildings / apartments / hotels

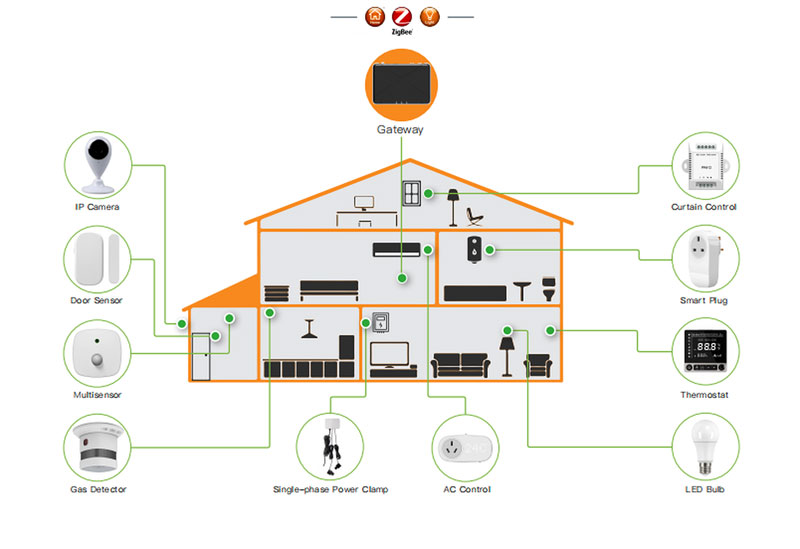

▶Application Scenarios:
Smart home energy monitoring (US)
Apartment & multi-family housing
Hotel room energy control
Smart building plug-level sub-metering
OEM energy management kits
▶Video：
▶ Main Specification:
|
Wireless Connectivity |
ZigBee 2.4GHz IEEE 802.15.4 |
|
RF Characteristics |
Operating frequency: 2.4GHz Internal PCB Antenna Range outdoor/indoor: 100m/30m |
|
ZigBee Profile |
Home Automation Profile |
|
Operating Voltage |
AC 100 ~ 240V |
|
Max. Load Current |
125VAC 15A Resistive; 10A 125VAC Tungsten; 1/2HP. |
|
Calibrated Metering Accuracy |
Better than 2% 2W~1500W |
|
Dimension |
130 (L) x 55(W) x 33(H) mm |
|
Weight |
120g |
|
Certification |
CUL, FCC |
-
