▶ Main Features:
• Supports Tap-to-Run and automation with other Tuya devices

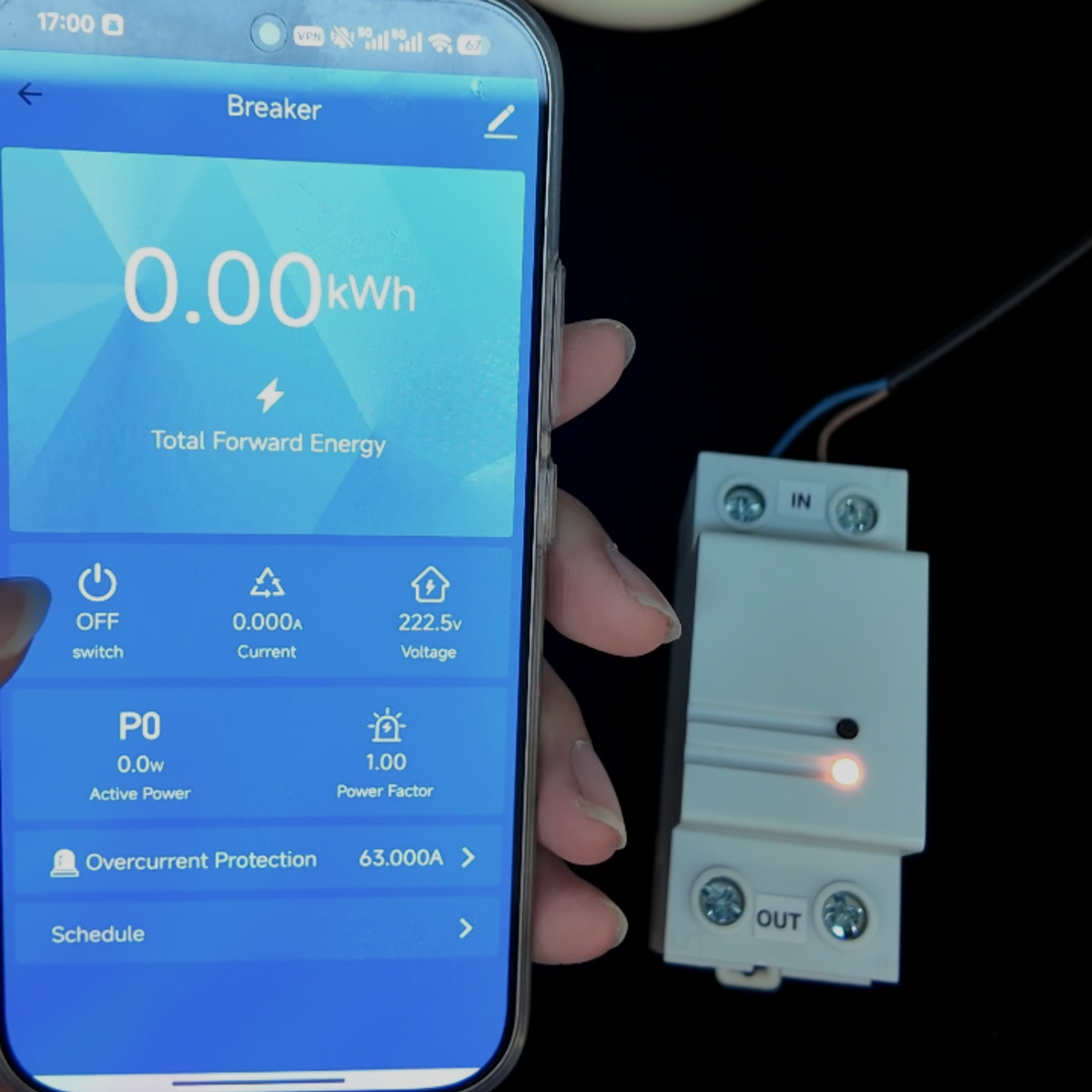

• Control connected devices remotely via mobile App
• MQTT API supported for integration with IoT platforms, building management systems (BMS), and energy management systems (EMS)
• Measures real-time voltage, current, power factor, active power, and total energy consumption of connected devices
• Schedule devices to automatically turn on/off
• Supports configurable overcurrent and overvoltage protection via App
• Power status can be retained after power failure
• Supports Alexa and Google Assistant voice control (On/Off)
• Usage trends available by hour, day, and month

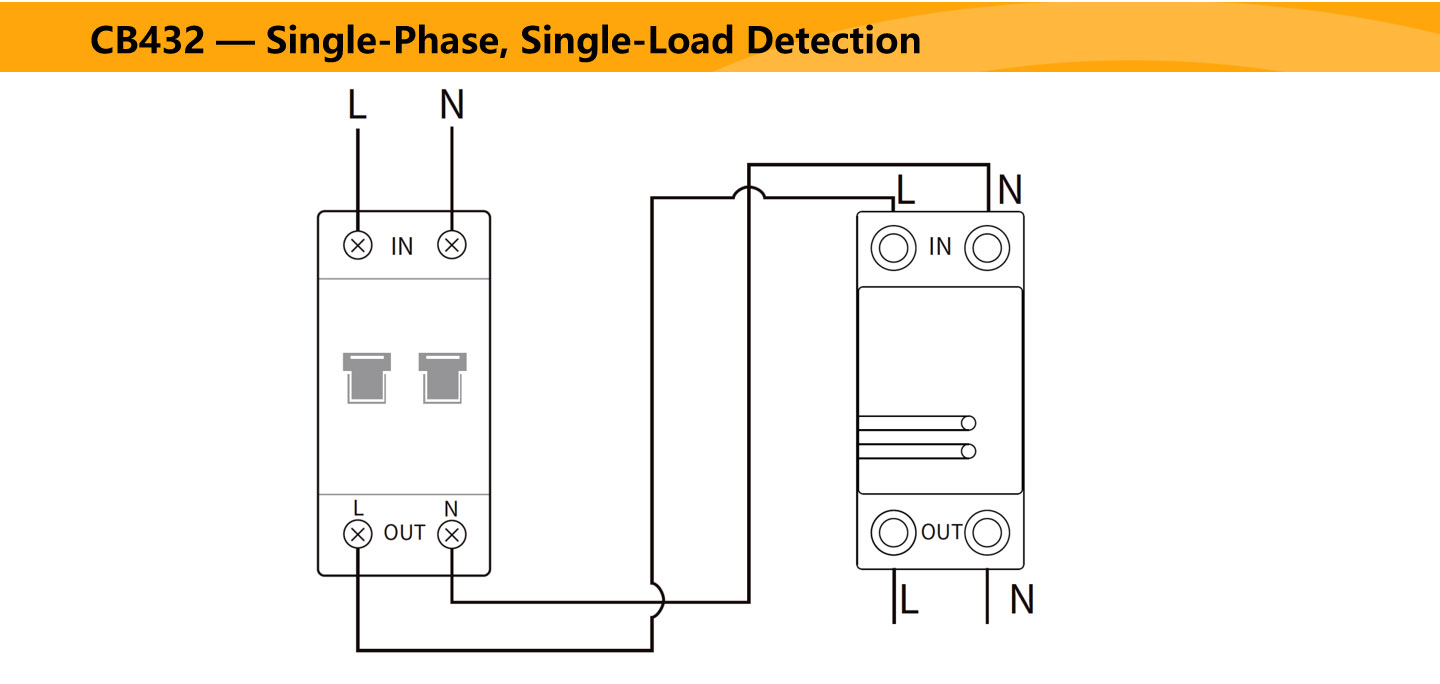

▶ CB432 WIFI DIN Relay Wiring Diagram
▶ Applications:
• Smart home automation
• Commercial HVAC or lighting load control
• Industrial machine energy scheduling
• OEM energy kit add-ons
• BMS/Cloud integration for remote energy optimization
▶Connectivity Options
This 63A DIN rail smart relay is available in multiple communication versions depending on system architecture requirements.
For gateway-based energy management systems and scalable mesh networking deployments, explore the Zigbee DIN Rail Smart Relay CB432 Version.
Wireless Connectivity |
|
| Wi-Fi | • 802.11 B/G/N20/N40 |
| RF Characteristics | • Operating frequency: 2.4GHz• Range outdoor/indoor: 100m (Open Area)• Internal PCB Antenna |
Physical Specifications |
|
| Relay | • Single break |
| Operating Voltage | • 100~240 Vac 50/60 Hz |
| Power consumption | • < 1 W |
| Calibrated Metering Accuracy | • ≤ 100W ( Within ±2W )• >100W ( Within ±2% ) |
| Max. Load Current | • 63 A |
| Operating environment | • Indoor• Temperature: -20 ℃ ~+55 ℃• Humidity: ≤ 90% noncondensing |
| Dimension | • 82 (L) x 36(W) x66(H) mm |
| Weight | • 186 g |
-
